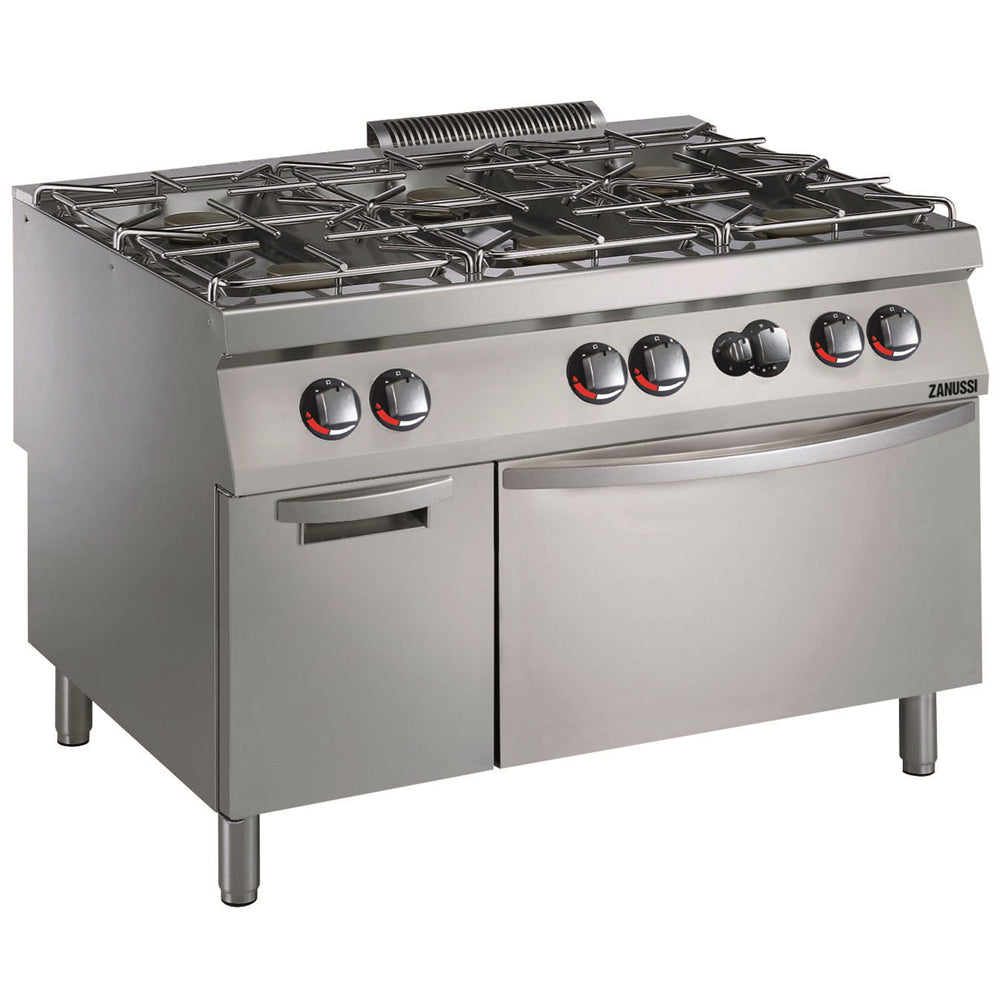

Gas 1200mm 6 Open Burners 36 mj with Gas Static Oven + Cupboard
Base compartment consists of a gas heated standard oven with stainless steel burners and self stabilizing flame positioned beneath the base plate. Oven chamber to have 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed cast iron base plate.

Cupboard compartment for storage of pots, pans, sheet pans etc.

Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.

Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.

IPX5 water protection.

Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.

Protected pilot light.

The special design of the control knob system guarantees against water infiltration.

Burners with optimized combustion.

Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.

Oven thermostat adjustable from 120 °C to 280 °C.

40 mm thick oven door for heat insulation.

The six 10 kW high efficiency burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
• 60 mm burners with continuous power regulation from 1,5 to 6 kW

• 100 mm burners with continuous power regulation from 2.2 kW to 10 kW

Control knobs provide smooth, continuous rotation from min to max power level.

Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

AISI 304 stainless steel worktop, 2mm thick.

All exterior panels in Stainless Steel with Scotch Brite finishing.

Pan supports in stainless steel.

Unit is 900mm deep to give a larger working surface area.
