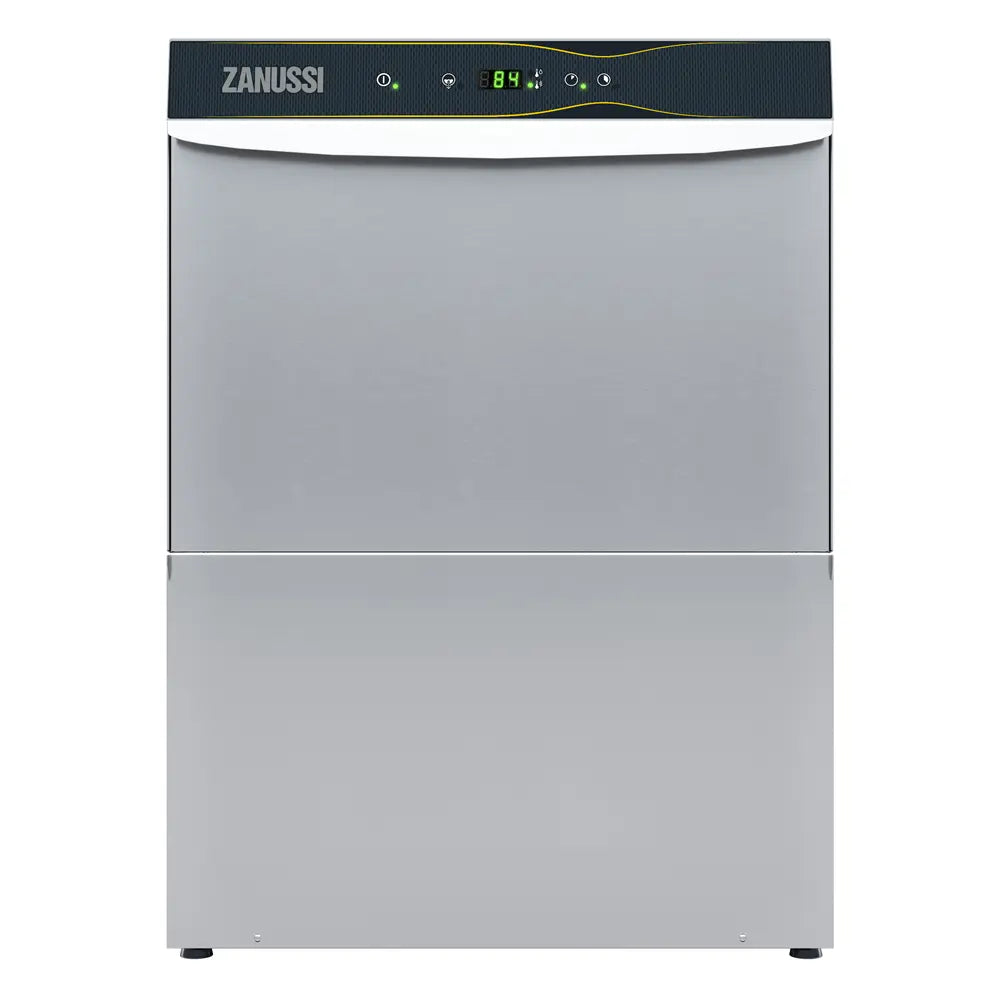

Undercounter Dishwasher with Drain Pump, Detergent Dispenser and Pressure Boiler
4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

An effective rinse system uses only 3 liters of clean hot water per basket for lower running costs.

Incorporated Soft Start feature to offer additional protection to more delicate items.

Built-in pressure boiler sized to raise incoming 50 °C water to guarantee a minimum rinsing temperature of 82 °C for sanitizing rinse. No external booster is required.

Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

Digital read-out keeps operator informed as to cycle status as well as temperatures.

IPX 4 water protection.

State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.

Simple service from the front.

Washing capacity of 30 baskets or 540 dishes per hour.

Element protection from dry fire and low water.

Incorporated drain pump to control water level in wash tank draining.

Interchangeable wash/rinse arms screw out for simple clean up.

The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

Double skin insulated door to reduce heat dispersion.

Unit to feature smooth surfaces to facilitate cleaning.

Front and side panels, door and wash tank made in heavy duty anti-corrosive AISI 304 stainless steel.

304 stainless steel boiler with higher welding protection to increase resistance to corrosion.

PVC water supply hose with metal connections resistant to high water pressure.

Completely closed on the back by a cover plate.

Large wash tank with round corners and no pipes to avoid dirt built-up.

Single phase electrical connection.
