Description

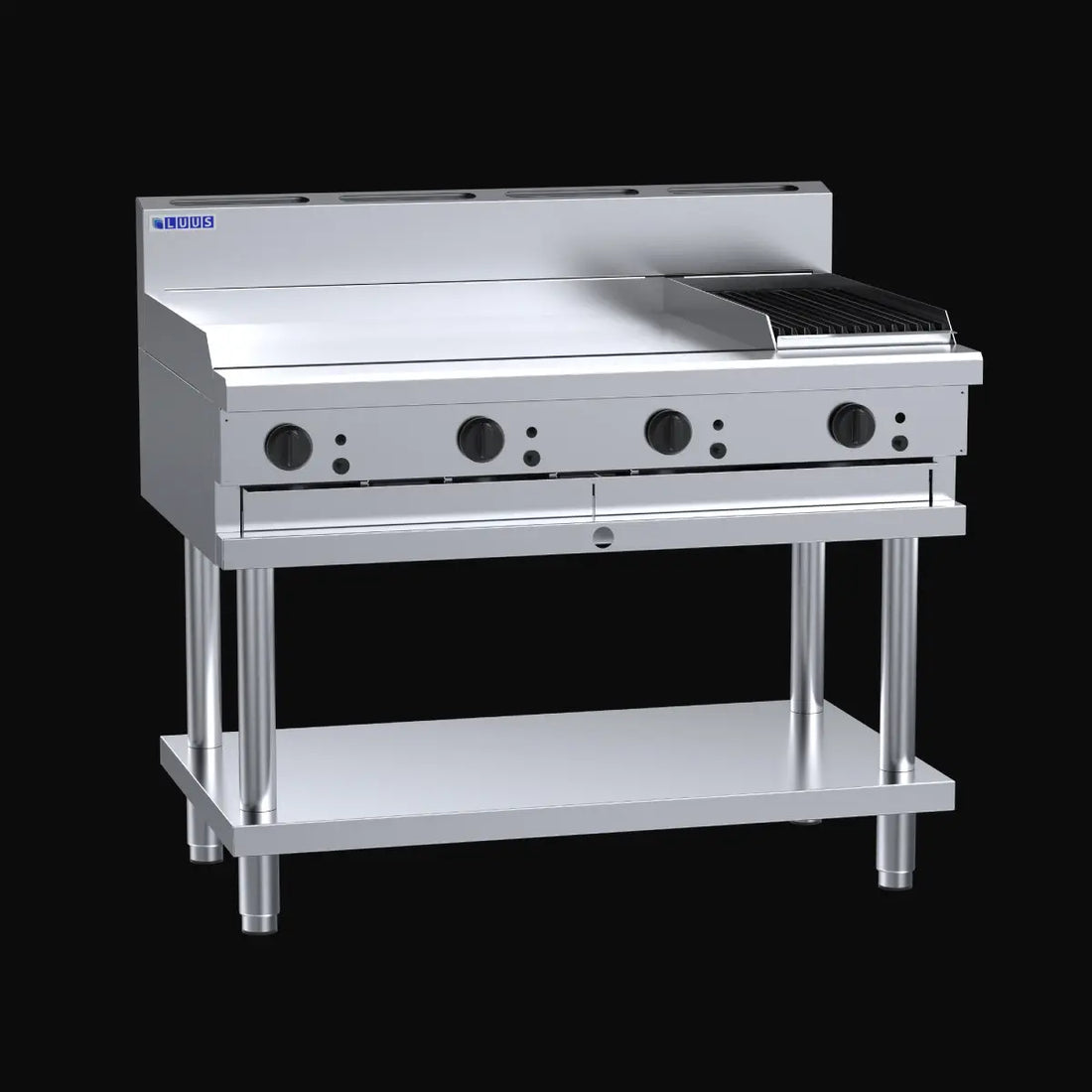

• The CS-9P3C 300mm chargrill plus 900mm griddle plate combination ensures ample heat from the burners is spread evenly across the 21mm thick mild steel surface, all within a compact 800mm deep unit. Available as a benchtop or freestanding with an undershelf storage area.
900mm Griddle 300mm Chargrill Combination with legs & shelf
Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 21mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-9P3C plate: 890mm x 540mm; 0.48m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel
Chargrill/Barbecue
• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
• Optional ceramic rocks for even heat and smokiness
• Optional cast iron ceramic rock tray
• Heavy duty cast iron ‘diamond’ grates 147mm x 540mm
• CS-9P3C bbq: 280mm x 520mm; 0.15m2 cooking area
• 2mm 304 stainless steel splash guards
• Chargrill undertray 0.9mm stainless steel
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Rear castors
• Joining caps
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Ceramic rocks (specify when ordering)
• Benchtop mount (specify when ordering
Specification
| SKU | CS-9P3C |
|---|---|
| Fuel | Gas |
| Width (mm) | 1200 |
| Depth (mm) | 800 |
| Height (mm) | 1100 |
