• Inspired by the fast-paced kitchens of Hong Kong, 'Fo San' is cantonese for volcano, representing the raw heat and power generated by the unique burner set-up. The WV-1A1P1A double hole wok comes with two fan forced stainless steel 145MJ air-blast burners and centre pot, electronic ignition, external pilot, rear flue system and pre-cast fire-brick combustion chamber.

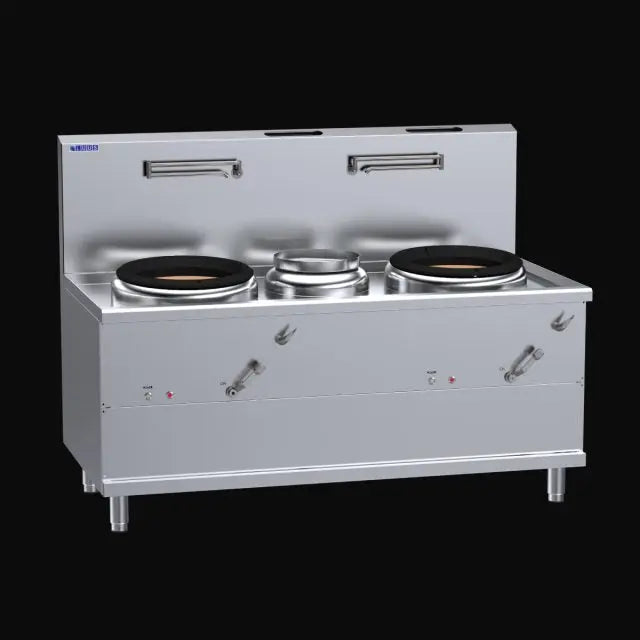

2 Air-Blast Burners & 1 Centre-Pot Fo San Wok with fan, electronic ignition
• 2 x 145 mj Air-Blast Burner with 3 mj pilot & FFD standard
• Electronic auto-ignition switch and burner reset function
• Fan-forced stainless steel burner easy-to-clean design
• External pilot position most effective at avoiding blockages
• Fire-brick lined combustion chamber and ceramic base
• Rear flue system provides effective & efficient combustion
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
• Ergonomically designed burner handle can be repositioned
at 45˚ orientations to match personal preference

Overall Construction
• Heavy duty construction
• Robust, full skirt, 355mm cast-iron ring
• 1.5mm 304 stainless steel top deck
• Splashback 1.2 mm 304 stainless steell
• Front cover and hob 1.2mm 304 stainless steel
• Side panels 0.9mm 304 stainless steel
• Stainless steel removable legs
• 55mm height adjustment range
• 1.5mm 304 stainless steel base panel
• One-piece hob and deck

Cleaning & Servicing
• Front gutter design and waste strainer for easier cleaning
• Top surface and skirting is easy to clean from above
• Burner removable and accessible from above
• Burner injector, electrode and flame probe accessible
• Control box accessible via lower front cover
• Drain and tap accessible by removing upper front cover
• Gas train, air-line, fan and burner accessible by removing
front covers

Options/Accessories
• Lowered splashback to 1100mm overall height
• 250mm wide clip on shelves (front)
• Joining caps & strips
• RH and LH side shields
• Rear castors
